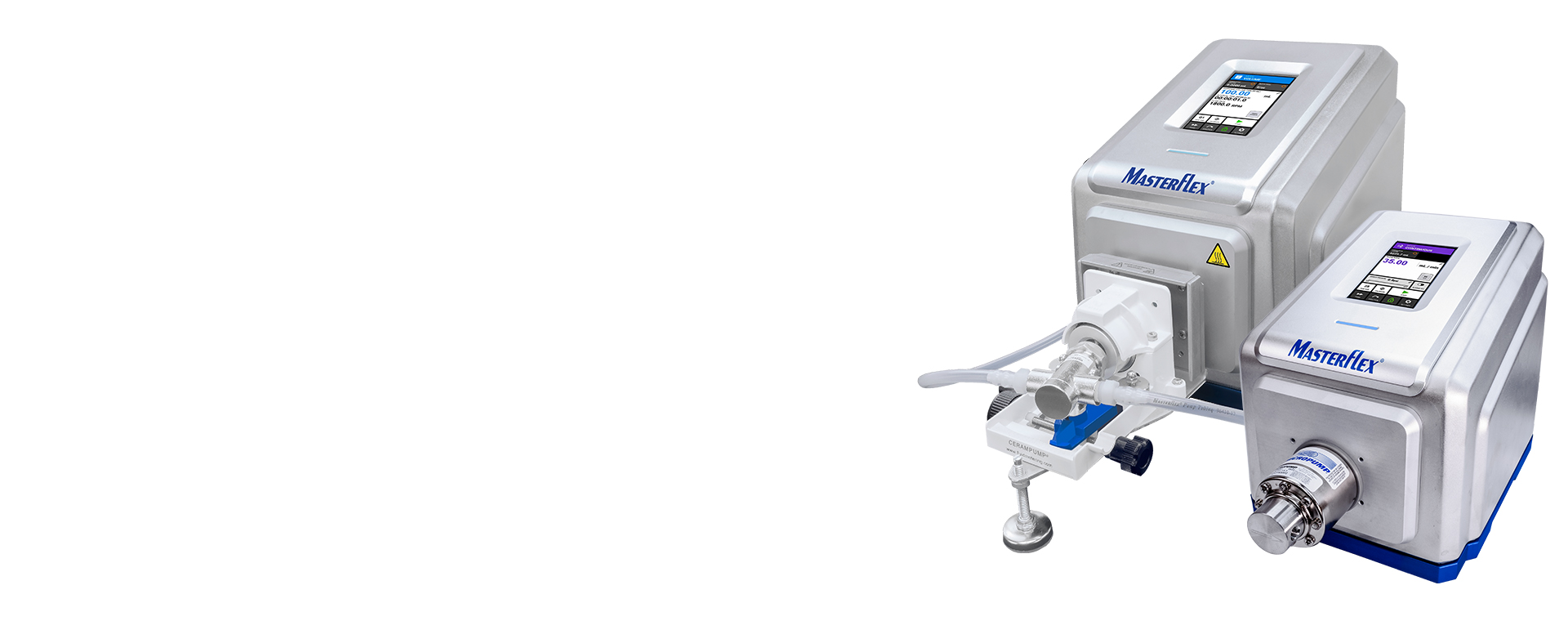

Masterflex® MasterSense™ Gear & Piston Process Pumps
Your process, evolved
Using MasterSense™ digital technology, these pumps offer advanced user experience, sensor monitoring, flow control, and connectivity for mid to high flow, higher pressure applications.

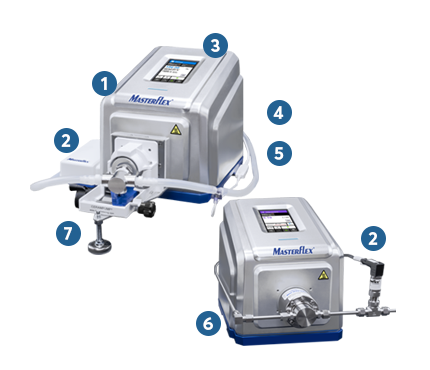

Features that make your process effortless

- Perfect for sanitary environments — 316 polished stainless steel housing IP66 NEMA 4X rated for washdown
- Sensors integrated into the flow path monitor fluid pressure and alert before there is a potential for process failure.
- Intuitive digital touchscreen with optimized menu navigation to store and recall standard protocols ensuring continuity-
- even with wet gloves on!
- Over-the-air firmware updates ensure optimization of your pump system without moving the system
- Superior mechanical design supports higher flow ranges, pressures and torque capability for greater repeatability and pumping higher viscosity fluids.
- Gear Pumps are the optimal choice for pumping clean fluids in higher pressure, pulseless flow applications.
- Piston Pumps offer high repeatability for critical dispense applications where change-out and lot-to-lot contamination is not critical.

Continous Mode*

Time Mode

Volume Dispense

Pressure

User Access

Program Save & Recall

Network Detection

Remote Mode*

Head Calibration*

Skip reading the operation manual
Intuitive touch screen interface, even when wearing gloves
- Easy to set up and program
- 5" capacitive TFT/RGB touch screen with a clear, wide viewing angle
- Adjust parameters with a simple touch - even with gloves on
- Operational modes include continuous run, volume dispense, and time dispense
- Batch control and interval/off time in Volume and Time modes
- Easily save and recall up to 50 commonly used protocols, each with a unique name
- Know when you hit your mark - graphical indicator lets you know when pump system is optimally calibrated

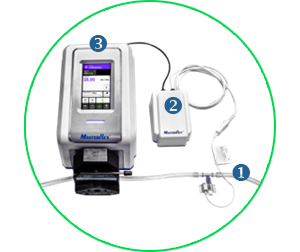

Integrated sensor monitors your media so you don’t have to
Seamless monitoring, avoid risk and save money
- Install in-line pressure sensor
- Connect sensor to pump
- Configure alarms and start pump

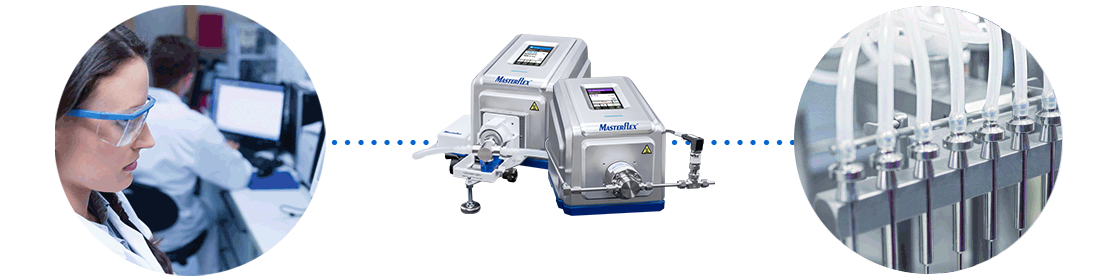

Advanced Connectivity and Control Options
Monitor from anywhere

Flexible Connectivity
- Your choice of connectivity options - EtherNet/IP™, PROFIBUS, Serial, or analog control
- Three-tier access to pump functionality - use this option to protect your process by controlling who can operate the pump and at what level
- Over-the-air firmware updates - automatically allows you to take full advantage of future enhancements
- Internet connection via Wi-Fi or standard Ethernet (RJ45) jack on rear of drive
Gear pump complete system components
To create a complete pump system, a drive and pump head are needed. Complete systems are available for common configurations (see table below), or choose the pump drive and select from a variety of Suction shoe mount A or B, or cavity style head pump head options available.
Gear Pump Complete Specifications & Product Details |
||||
Drive Only | Gear Pump System | |||
Model | MFLX07576-50 | MFLX77976-50 | MFLX77976-51 | MFLX77976-52 |
Flow range | 1.7 to 7380 ml/min | 9.2 to 552 ml/min | 64 to 3840 ml/min | 117 to 7000 ml/min |
RPM | 100 to 6000 RPM | |||
Max Differential Pressure | 8.6 bar (125 psi) | 4 bar (60 psi) | 6.9 bar (100 psi) | 1.7 (25 psi) |
Included pump Head | Order Separately | MFLX07002-14 | MFLX74012-21 | MFLX07003-04 |
Process connection | 1/8" NPT Female | 1/8" NPT Female | 1/8" NPT Female | |
Viscosity | 0.5 to 1500 Centipoise (Clear fluids) |
Learn more - See Gear pump performance and technical spec sheet
Gear pump heads
Piston pump complete system components
To create a complete pump system, a drive and pump head are needed. Complete systems are available for common configurations (see table below), or choose the pump drive and select from a variety of Q-series or Rh-Series Piston pump heads. An adapter required for low-flow RH models.
Gear Pump Complete Specifications & Product Details |
||||
Drive Only | Gear Pump System | |||
Model | MFLX07576-50 | MFLX77976-50 | MFLX77976-51 | MFLX77976-52 |
Flow range | 1.7 to 7380 ml/min | 9.2 to 552 ml/min | 64 to 3840 ml/min | 117 to 7000 ml/min |
RPM | 100 to 6000 RPM | |||
Max Differential Pressure | 8.6 bar (125 psi) | 4 bar (60 psi) | 6.9 bar (100 psi) | 1.7 (25 psi) |
Included pump Head | Order Separately | MFLX07002-14 | MFLX74012-21 | MFLX07003-04 |
Process connection | 1/8" NPT Female | 1/8" NPT Female | 1/8" NPT Female | |
Viscosity | 0.5 to 1500 Centipoise (Clear fluids) |
