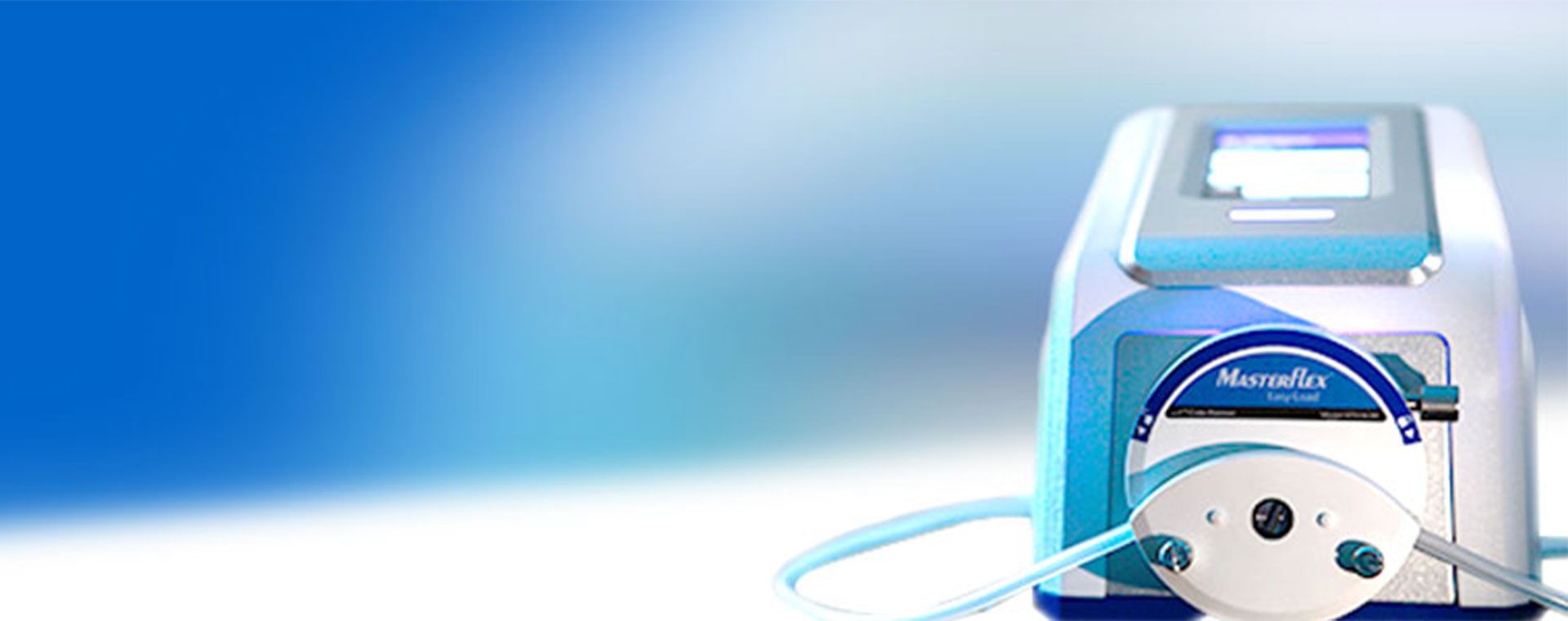

Masterflex® L/S® MasterSense™ Drives
Reimage fluid handling
NEW integrated sensor technology, intuitive touchscreen and MasterflexLive® remote monitoring for the biopharma industry of tomorrow
MasterSense™ monitors your media so you don't have to
With the extra time, a process engineer could:
Monitor your process remotely and stored programs securely
MasterflexLive

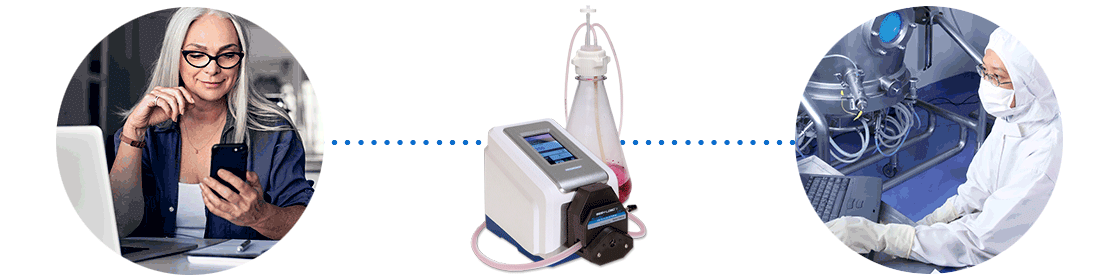

- MasterflexLive is our secure, cloud-enabled platform for real-time remote monitoring of all Masterflex pump parameters
- Monitor critical processes running 24/7 without the need for onsite personnel
- Push notifications alert you to changes in operating conditions and error messages
Flexible Connectivity
- Your choice of connectivity options—MasterflexLive®, EtherNet/IP, or Profibus
- Three-tier access to pump functionality—use this option to protect your process by controlling who can operate the pump and at what level
- Over-the-air firmware updates—automatically allows you to take full advantage of future enhancements
- Internet connection via Wi-Fi or standard Ethernet (RJ45) jack on rear of drive
Complete your pump system
Choose from 8 pump heads and 20+ tubing formulations to create the perfect pump for your process
Choose the drive or complete pump that is right for you
| 100 RPM (up to 4 pump heads accepted) | 600 RPM (up to 2 pump heads accepted) | 600 RPM Easy-Load Complete System | 600 RPM Easy-Load II Complete System | |
| Flow Range | 0.001 to 580 mL/min | 0.006 to 3400 mL/min | 0.08 to 480 mL/min | 0.28 to 1700 mL/min |
| With EtherNet/IP and MasterflexLive | MFLX07526-20 | MFLX07526-10 | MFLX77920-40 | MFLX77920-42 |
| With Profibus and MasterflexLive | MFLX07526-22 | MFLX07526-12 | MFLX77920-50 | MFLX77920-52 |
Drive Specifications | ||||
| Agency Approvals | UL, cUL, CE | |||
| Warranty | 2 Year | |||
| MasterflexLive | Real-time remote monitoring of all pump parameters. Push notifications alert you to operating conditions and error messages, allowing you to monitor critical pump processes 24/7—no need to be onsite. | |||
| EtherNet/IP or Profibus | Interface directly with either Ethernet/IP or Profibus based process control network(s) (using PLC, SCADA or similar); enables control of all pump parameters via network interface. | |||
| Speed control accuracy (resolution) | ±0.1% (0.1 rpm at 600 rpm; 0.01 rpm at 100 rpm) | |||
| Reversible | Yes | |||
| Display | 5” capacitive TFT/RGB touch screen with in-plane switching (wide viewing angle); 800 x 480 pixels | |||
| Digital Dispensing | Yes | |||
| External control - input | 0 to 20 mA, 20 to 0 mA, 4 to 20 mA, 20 to 4 mA; 0 to 10 V, 10 to 0 V, 0 to 5 V, 5 to 0 V; start/stop, direction (CW/CCW), prime via contact closure | |||
| External control - output | 0 to 20 mA, 20 to 0 mA, 4 to 20 mA, 20 to 4 mA; 0 to 10 V, 10 to 0 V, 0 to 5 V, 5 to 0 V; Tach output (open collector), Motor running, Open head, Local/Remote, General alarm | |||
| Motor | Brushless DC with encoder; continuous duty; reversible; 1/10 hp (75 W) | |||
| Open-head sensor | Yes; extension cable included | |||
| Housing materials | ABS plastic housing, painted aluminum chassis, painted aluminum bezel | |||
| Enclosure rating | IP33 | |||
| Dimensions (L x W x H) | 10-1/4" x 7-5/8" x 8-1/2" (26 x 19.4 x 21.6 cm) | |||
| Shipping weight | 11 lb (5 kg) | |||
| Power | 90 to 260 VAC, 50/60 Hz | |||
Non-contaminating, low shear, and noninvasive makes this pump perfect for Biopharma and healthcare.
